Cameras

The Cameras.vue component is used to display camera feed provided by the FPV camera server.

This component uses the Card, Carousel, and Skeleton components from shadcn/vue.

Features

4:3 aspect ratio camera views which fit the actual camera resolutions.
Placeholder skeleton for cameras if there is no feed (aka the camera server is not running).
Two camera layouts.

Camera Layouts

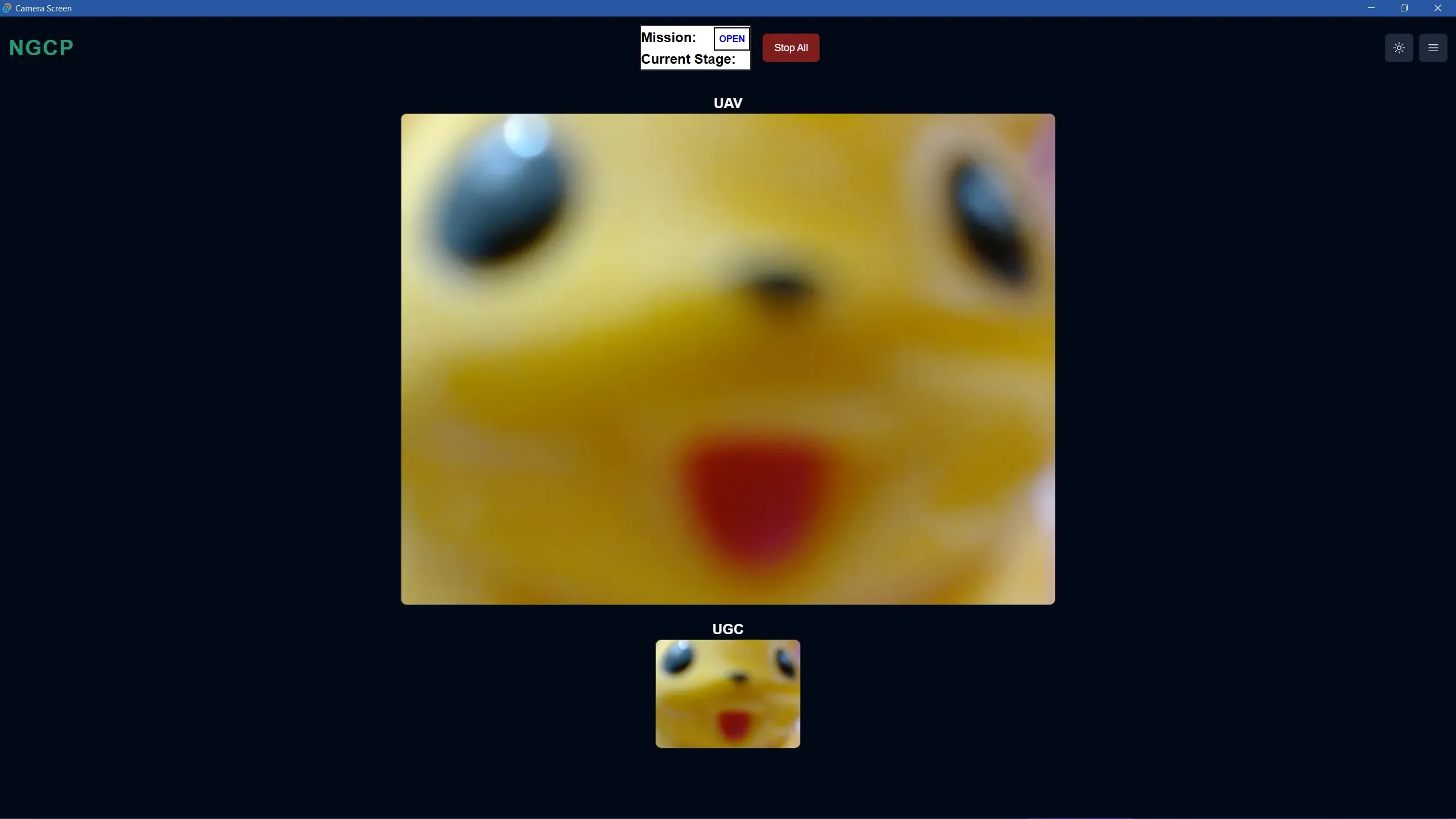

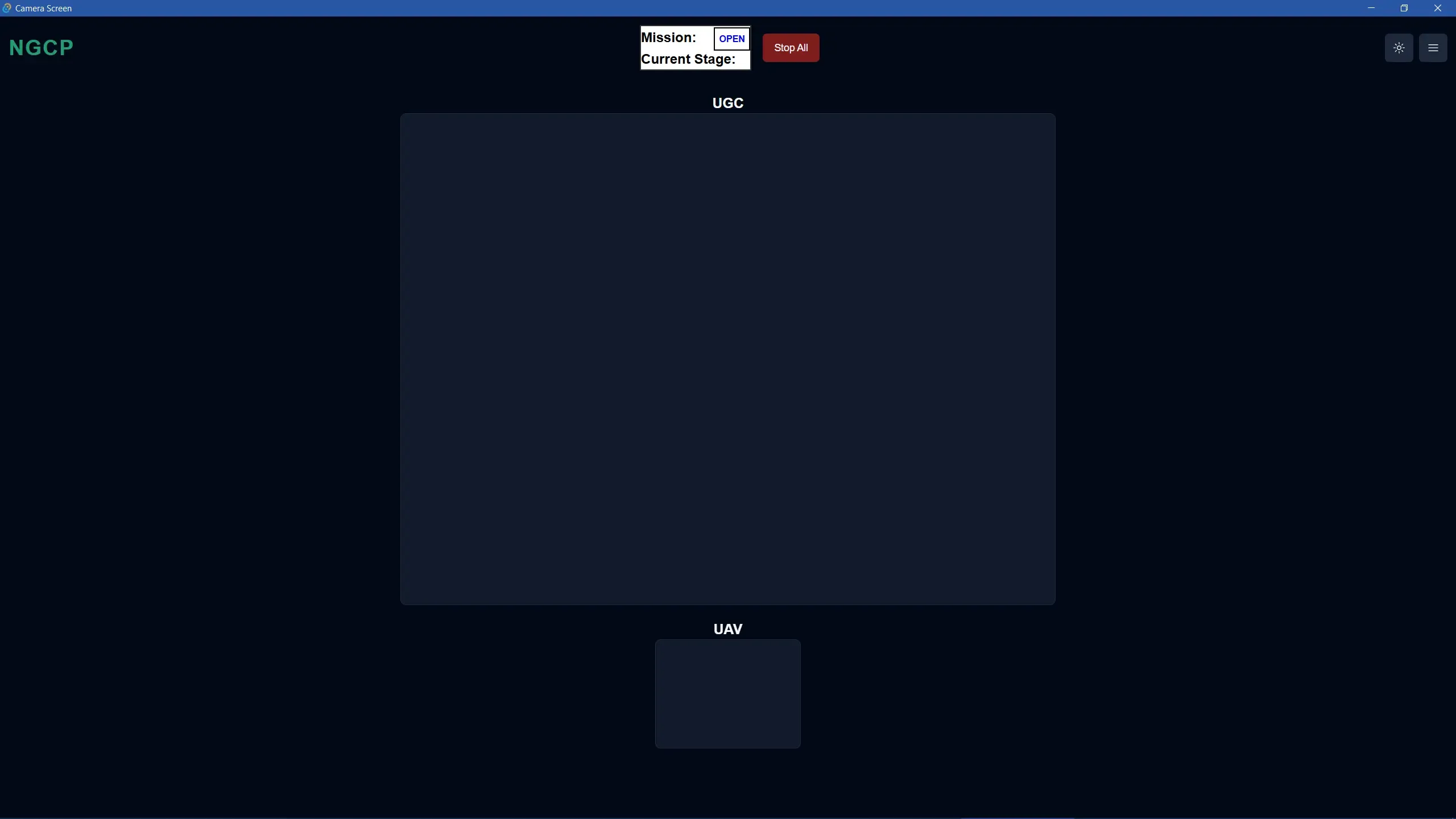

Carousel

Click the small camera or thumbnail to switch places with the enlarged camera.

Camera Off Preview | Camera On Preview

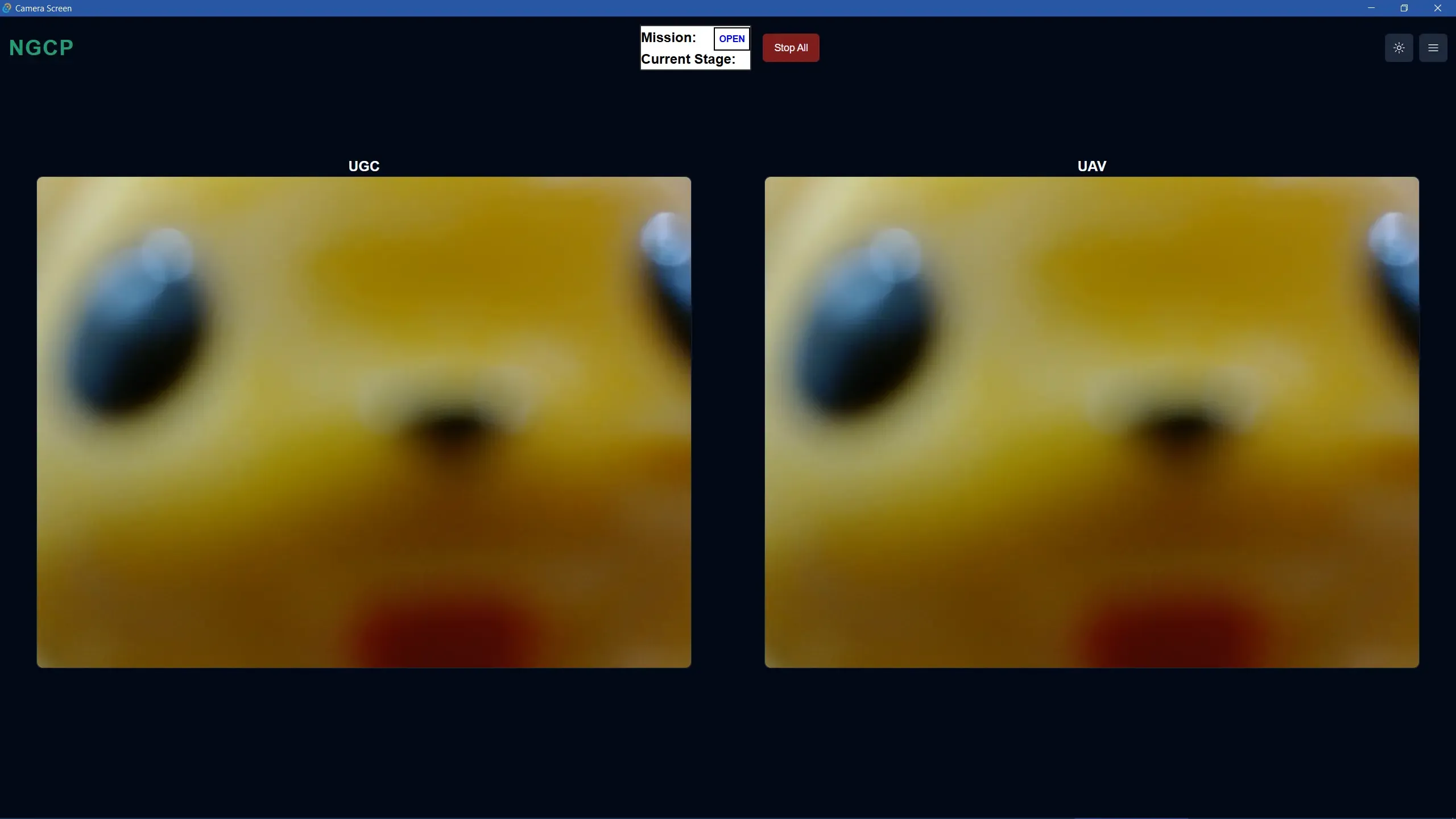

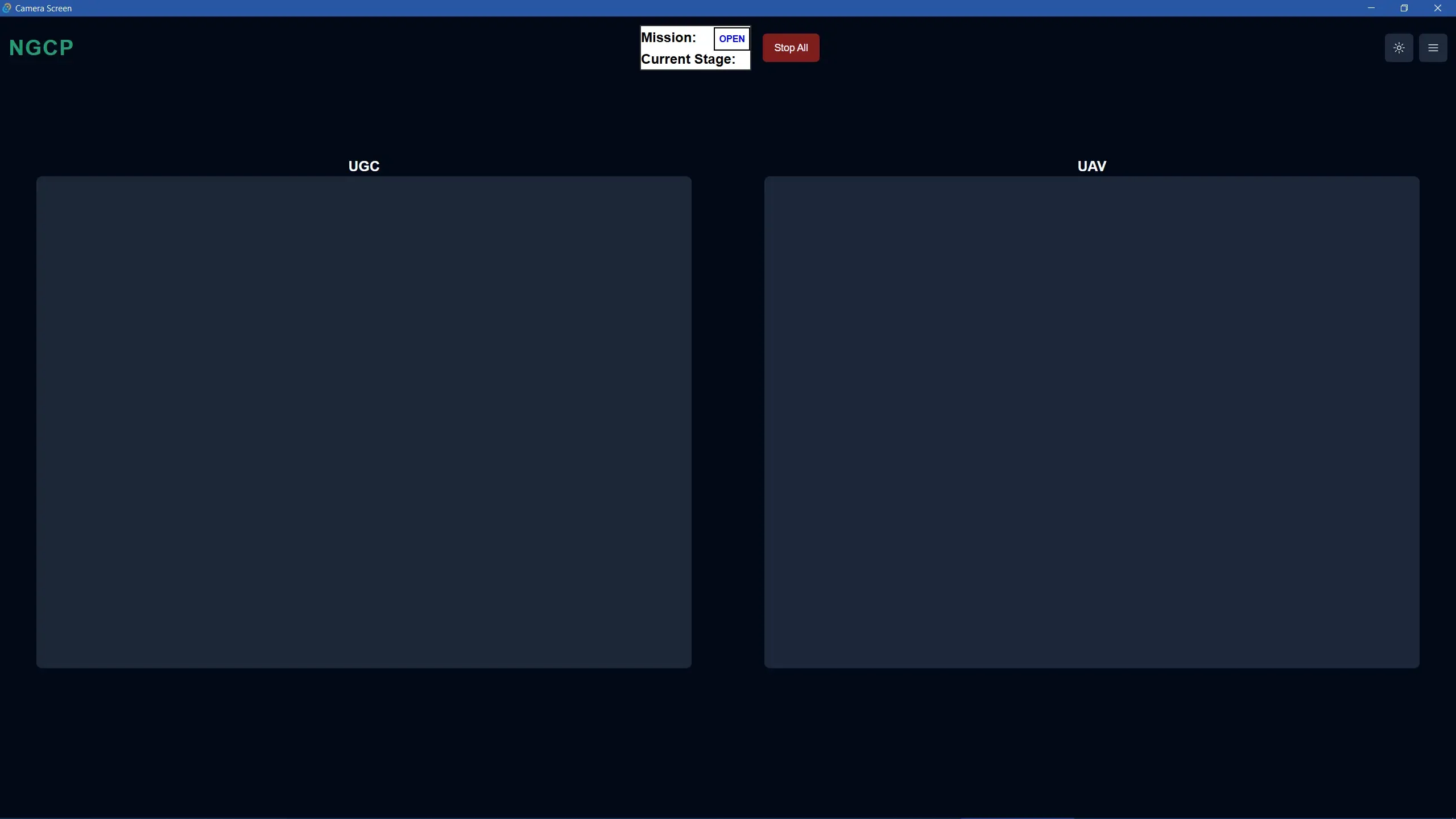

Side-by-side

Click the enlarged camera to switch layouts.

Camera Off Preview | Camera On Preview

Implementation

Both camera layouts exist at once, but are rendered based on a v-if statement. The string reference layout.value will store which layout is currently selected.

The FPV camera server repeatedly outputs an image, so we use an img tag to display the camera. If the server is offline (if v-if="feed.src" is false), a Skeleton component takes up the space where the camera feed should be.

<!-- Side-by-Side (Grid) Layout -->
<div class="grid-container" v-if="layout === 'grid'"> // Vue conditional for rendering side-by-side layout
  <div v-for="feed in cameraFeeds" :key="feed.id">
    <div class="camera">
      <p class="text-center text-xl font-semibold">{{ feed.name }}</p>
      <Card class="cursor-pointer" @click="toggleLayout"> // Click event handler for the cameras
        <CardContent class="flex p-0">
          <Skeleton class="aspect-[4/3] w-full" v-if="!feed.src" /> // If there is no feed, the Skeleton component fills up the empty camera space
          <img
            class="image"
            :src="feed.src"
            :alt="feed.name"
            @error="feed.src = ''"
            v-if="feed.src"
          /> // Camera feed
        </CardContent>
      </Card>
    </div>
  </div>
</div>

<!-- Carousel Layout -->
<div class="carousel-container" v-else-if="layout === 'carousel'"> // Vue conditional for rendering carousel layout
  <Carousel class="p-5" @init-api="(val) => (emblaMainApi = val)" :plugins="[Fade()]">
    <CarouselContent>
      <CarouselItem v-for="feed in cameraFeeds" :key="feed.id">
        <div class="focused-camera">
          <p class="text-center text-xl font-semibold">{{ feed.name }}</p>
          <Card class="cursor-pointer" @click="toggleLayout"> // Click event handler for the focused camera
            <CardContent class="flex p-0">
              <Skeleton class="aspect-[4/3] w-full" v-if="!feed.src" /> // If there is no feed, the Skeleton component fills up the empty camera space
              <img
                class="image"
                :src="feed.src"
                :alt="feed.name"
                v-if="feed.src"
              /> // Camera feed
            </CardContent>
          </Card>
        </div>
      </CarouselItem>
    </CarouselContent>
  </Carousel>
  ...

This is the function triggered by the click event.

const toggleLayout = () => {
  if (layout.value === 'grid') {
    cleanupCarousels();
    layout.value = 'carousel';
  } else {
    layout.value = 'grid';
  }
};
