Zustand Stores

Zustand is a state management library used as our solution to synchronizing states between the backend (TauRPC & RabbitMQ) and the frontend (Vue.js). Everything discussed in the following sections will be primarily focused on the frontend side.

Currently, we are using this for Map, Mission, and Telemetry.

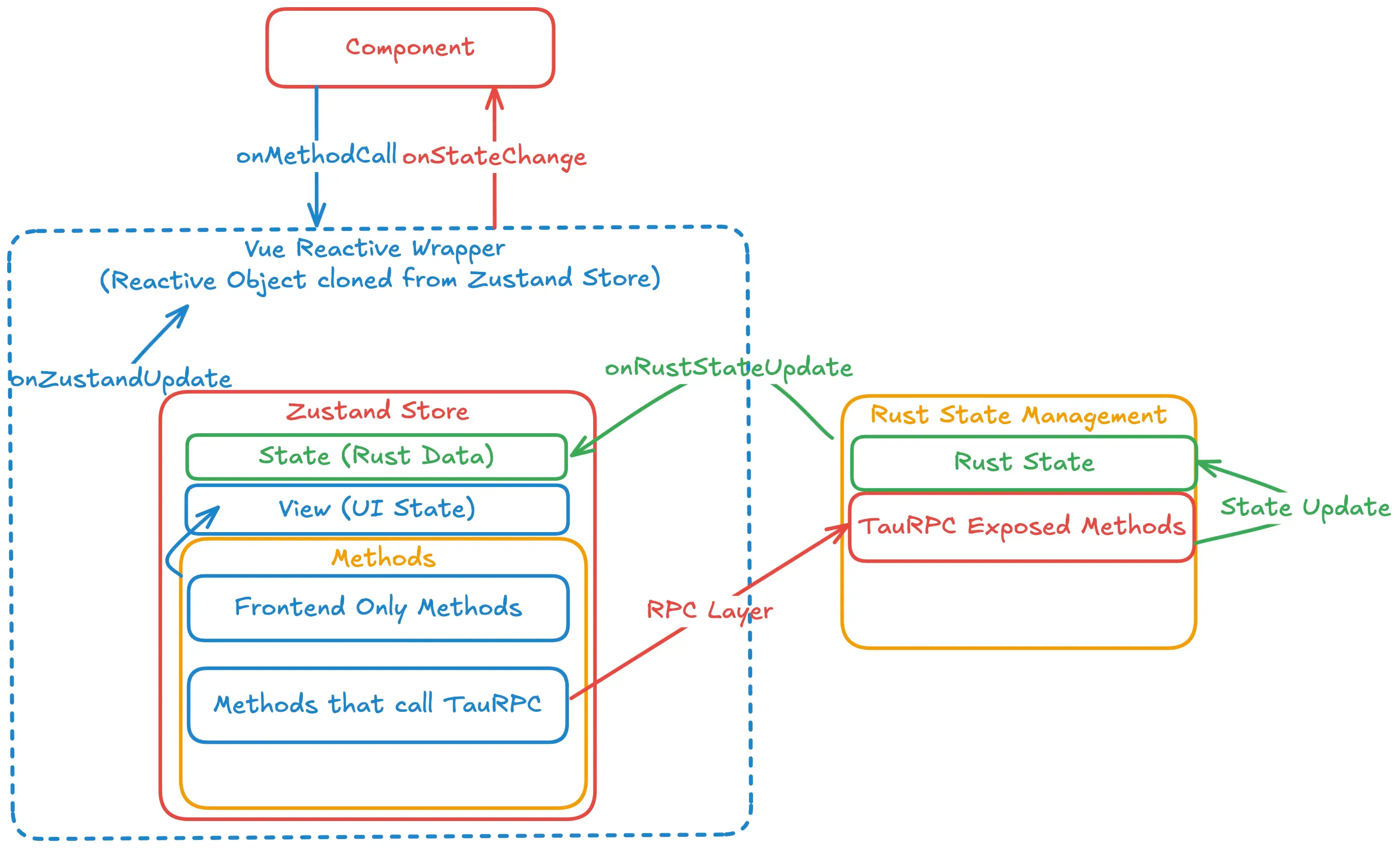

The following diagram provides an overview of how state management works on the frontend.

How it Works

To use Zustand, we must create a store. A store is an object that contains the state and methods for the application. This store is a centralized place to store states and logic. Whenever states update in the Tauri Rust backend, the store will also update with the new states. The Vue frontend then can read from these states after the update, ensuring synchronized data between the backend and the frontend.

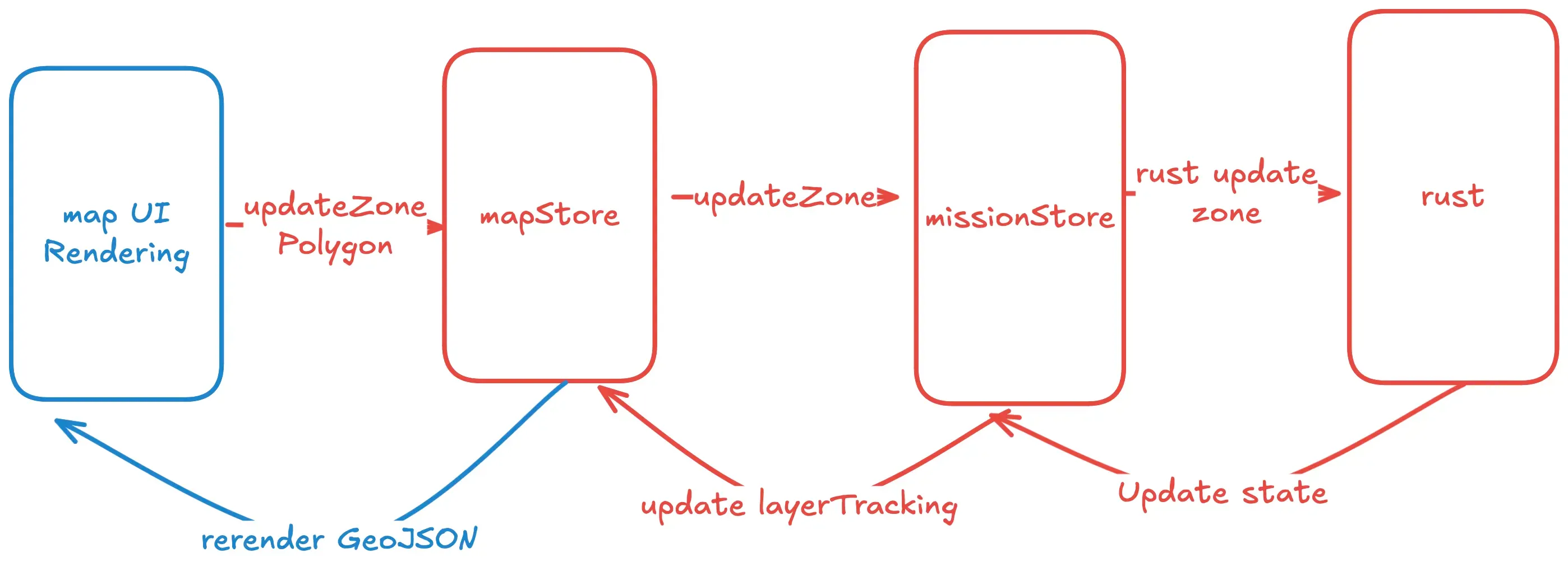

One thing to note is that stores can communicate with each other. If the data-flow of one API is similar or related to another API’s, then we can utilize multiple stores to achieve a task. We’ll explain this with an example using the Map Store and Mission Store.

For some quick context, we use a map to designate zones for the vehicle’s area of operations.

The Map Store is strictly responsible for updating the zones visually, so it is not responsible for updating the data of the zones. To do the latter, we use the methods in the Mission Store to update the zones data to our Rust backend. Hence, there is a layer of abstraction where methods from one store are being called by methods in another store.

Creating a Store

This guide will assume there is already a backend API set up. At the very least, a types.rs file (which you can find under src-tauri/src/[api name]).

Initialization

First, create a store file called [store name].ts file under src/lib. We’ll need to import some dependencies.

src/lib/ExampleStore.ts

import { createStore } from "zustand/vanilla"; // #1
import { DeepReadonly, reactive } from "vue"; // #2
import { createTauRPCProxy, ExampleStruct } from "@/lib/bindings"; // #3
import { ExampleStore } from "@/lib/MissionStore.types"; // #4

#1 is for the createStore function.

#2 is used in a workaround to make Zustand reactive. Refer to A Pitfall of Zustand.

#3 is for initializing the store.

• createTauRPCProxy is a function that creates a proxy for TauRPC, our backend Tauri API library. This allows the frontend to perform remote procedure calls (RPC), which call backend functions as if they were local functions through a TypeScript API. This also abstracts away the boilerplate necessary for the frontend-backend communication.
• ExampleStruct is the struct being used to store states in the API. Refer to the associated types.rs file to figure out which structs to import.

#4 is the interface of your store. Refer to Typing.

Right after the imports, we will use the following two lines to initialize the TauRPC proxy and the initial state of our store.

src/lib/ExampleStore.ts

// Create TauRPC proxy
const taurpc = createTauRPCProxy();

// Fetch initial state from backend
const initialState: ExamplesStruct = await taurpc.example.get_all_examples();

For initial state, there is usually an exposed function from the backend that will fetch all necessary states for your store/struct. Notice how the get_all_examples() function is being accessed via the taurpc constant.

Now the store can be created.

src/lib/ExampleStore.ts

export const exampleZustandStore = createStore<ExampleStore>((set, get) => ({
  state: initialState

  syncRustState: (rustState: ExamplesStruct) => {
    set(
      () =>
        ({
          state: rustState
        }) satisfies Partial<ExampleStore> // Satisfies a portion of the store interface
    );
  },
}));

This part of the store definition will be necessary for the Backend Listeners. The store’s state is set via a set() function with the rustState object, ensuring synchronization with the backend Rust state. The Partial type needs to be assigned to the interface since only a partial of the interface’s properties gets updated (in this case, state), otherwise it will give a type error.

Methods

For the createStore() function, we are passing in the store’s interface and two parameters— set and get. set() is used to set the local UI state. get() is used to get data from the backend. Pass in whichever method will be used. Past this chunk of code and within the store constant, write out the methods that will be used in this store.

Here are some examples of methods used by our Mission Store. Do note that the actual implementation can heavily vary between stores. This is simply to give an idea of how some methods work, not a strict template for writing methods.

src/lib/ExampleStore.ts

export const exampleZustandStore = createStore<ExampleStore>((set, get) => ({
  state: initialState

  syncRustState: (rustState: ExamplesStruct) => {...
  },

  setCurrentView: (view: ViewType) => {
    // Set the View state
    set((state) => ({
      view: {
        ...state.view, // Spread the existing view state to retain other properties
        currentView: view
      } satisfies ViewState // Satisfies the ViewState type
    }));
  },

  getMissionData: (missionId: number) =>
    // Get mission data from the backend
    get().state.missions.find((mission) => mission.mission_id === missionId),

  startMission: async (missionId: number) => {
    // Calls method in the backend to start mission
    return await taurpc.mission.start_mission(missionId);
  },
}));

TauRPC can also be used to call backend methods asynchronously.

While the Mission Store seperates the set(), get(), and TauRPC calls, other stores do not not have to follow this format. The logic used in each method can be mixed together or seperated, depending on what approach we want to take. This example from our Map Store utilizes both set() and get() in one method.

src/lib/MapStore.ts

const mapStore = createStore<MapStore>((set, get) => ({
  ...
  updateMapRef: (refValue: LeafletMapGeoman | null) => {
    const mapLeaflet = refValue?.leafletObject;
    if (!mapLeaflet) return;

    set({ map: refValue });
    // Assign preInitialized geoJSON to the map
    get().layers.addTo(mapLeaflet);
    get().updateLayerTracking(missionStore.state as MissionsStruct);
  },
  ...
}));

The key takeaways from this section are that stores allow the use of set() and get() to set the local UI state and to get data from the backend, respectively. In addition, the logic in each methods can be mixed and matched. Do not feel limited to how the methods are written in the given examples.

Backend Listeners

To retrieve data from TauRPC, we’ll need to set up these two listeners.

IMPORTANT: Never use .setState() directly as to modify the state property it can cause desync issues. Instead, use .syncRustState().

src/lib/ExampleStore.ts

import {
  createTauRPCProxy,
  ExampleStruct
} from "@/lib/bindings";

// On initial page load, fetch the example data from the backend
taurpc.example.get_all_examples().then((data) => {
  console.log("Example data fetched:", data);
  exampleZustandStore.getState().syncRustState(data);
});

// On example data update from backend, update the store
taurpc.example.on_updated.on((data: exampleStruct) => {
  console.log("Example data updated:", data);
  exampleZustandStore.getState().syncRustState(data);
});

In tandem with the get_all_examples() method mentioned earlier, the store will get the state of itself with getState() and synchronize the data pulled from the TauRPC backend with syncRustState(data).

Whenever the TauRPC data is updated, the store will also update its state via .on_updated.on()

Subscribing

At the bottom, we set up a subscription to listen for state changes so the store stays up-to-date.

src/lib/ExampleStore.ts

exampleZustandStore.subscribe((newState) => {
  Object.assign(exampleStore, newState);
  console.log('Example Zustand Store updated', exampleStore);
});

With the .subscribe() method, Zustand is listening for any changes to the state. When a change is found, it assigns the new state into the store.

Lastly, we’ll need this line at the bottom. This will be explained in A Pitfall of Zustand.

src/lib/ExampleStore.ts

export const exampleStore: DeepReadonly<ExampleStore> =
  reactive(exampleZustandStore.getState());

Typing

As per usual with TypeScript, we need to define the types and interfaces used in our store. Make a .types.ts file for the store, located in the same directory.

Main takeaway is to export an interface of the store, with type definitions for each method used. We’ll also need to define the type of the backend state used in the Store.

src/lib/ExampleStore.types.ts

export interface ExampleStore {
  state: ExampleStruct;
  syncRustState: (state: ExampleStruct) => void;
  ...
}

A Pitfall of Zustand

Zustand is an attractive framework-agnostic solution to centralized APIs between backend and frontend due to it being lightweight, fast, and scalable, but only after implementation did we realize why it was not used for Vue applications.

Our frontend framework, Vue, is reactive, meaning the UI automatically updates when the state changes. Unfortunately, Zustand is not reactive. Since it was too late to go back on the implementation, we need to use a workaround.

Workaround

At the very bottom of each store, we will include this code:

src/lib/ExampleStore.ts

import { DeepReadonly, reactive } from "vue";
import { ExampleStore } from "@/lib/MissionStore.types"; // Interface of the store

export const exampleStore: DeepReadonly<ExampleStore> =
  reactive(exampleZustandStore.getState());

We are recreating and then exporting the store by wrapping the store’s current state with Vue’s Reactive object. With this wrap, we allow components to automatically rerender on changes to the store. The DeepReadonly type will make all properties read-only to prevent desync and accidental changes to the state.

There is one more thing that needs to be added to whatever Vue component we are using the store in. We’ll be using MapSidebar.vue component as an example. This component will read states from MissionStore.ts.

src/components/MapSidebar.vue

<script>
  import { computed } from "vue";
  import { missionStore } from "@/lib/MissionStore";

  const stateUpdate = computed((prev: boolean | undefined) => {
    // Read from missionStore.state as a dependency
    missionStore.state;
    // Return a boolean value that switches between true and false
    return !prev;
  });
</script>

<template>
  <!-- Trigger rerender with stateUpdate boolean -->
  <Sidebar :key="String(stateUpdate)" side="right">
    ...
</template>

Whenever missionStore.state is updated, the stateUpdate constant will read the state value and return a boolean. This boolean simply switches between true and false, which will toggle the Sidebar off/on, thus causing Vue to rerender the component with the updated state values.

In the future, we hope to find other solutions for state management— possibly standalone Vue state management systems such as Pinia.
